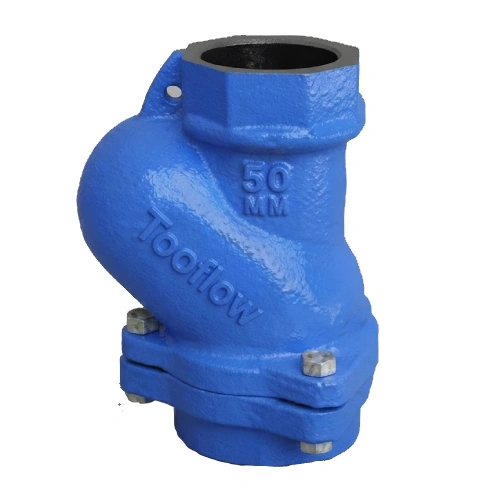

This Ball Check Valves is designed specially for lower pressure applications where the pipes are threaded. The working principal and features are as model B-01 giving all the advantages of the Ball Type design.
The typical applications are domestic pumping, low rise building pumping, small irrigation systems. The working pressure is 6 bar.
Material Specification
| Description | Material of Construction |
|---|---|
| Body / Adapter | Cast Iron (GG25) |
| Ball | Nitrile Reinforced |
| Sealing Ring | Nitrile up to 80 mm / L.T. Bronze for 100 mm |
| Fasteners | Carbon Steel |
| Paint | Enamel Paint |
| End Connection | Threaded |
| Size Range | 25 mm to 100 mm |
| Pressure Testing |
Body : 1.5 × PN Seat : 1.1 × PN |
| PRESSURE RATING -KPa | PN 0.6 (25 mm to 100 mm) |
| Installation | Vertical |
| Temperature | Suitable up to 80°C |

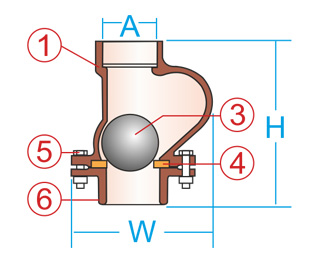

| 6 = Dimensions (Valve Size in mm) | ||||||
|---|---|---|---|---|---|---|
| A | 25 | 40 | 50 | 65 | 80 | 100 |
| H | 100 | 135 | 165 | 200 | 244 | 284 |
| W | 90 | 125 | 148 | 190 | 232 | 275 |
